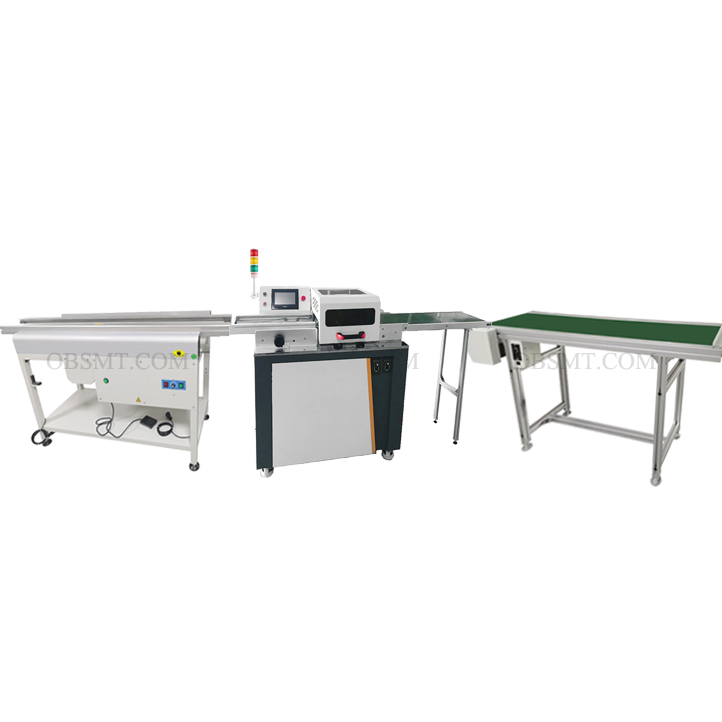

Auto LED cutting line
Brand: OUBEL
Delivery time: 5-7 working days
Description
Auto LED cutting line is used for cutting LED automatically,improve cutting efficiency.
Leave message
Description

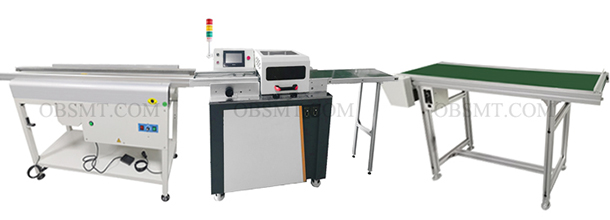

Auto LED cutting line
PCB link conveyor
| Dimensions | Length*400*750mm |
| Material | Stainless steel |
| Conveyor type | Chain conveyor |
| Speed | Adjustable |
| Weight | 120KG |
Auto LED cutting machine
| Working mode | Online |
| Visual System | High Resolution Digital Camera |
| Driving motor | AC brushless servomotor |
| Number of motion axes | 7 |
| Working range | 250 *350 mm |
| Cutting speed | 0-100mm/s |
| Applicable PCB thickness | 0.3-2.0 mm |
| Milling cutter diameter | 0.5-4.0 mm |
| Spindle speed | Max 60,000 rpm |
| Operating Interface | Windows 7 |
| Dimensions | 1902 x 1550 x 1615mm |
| Weight | 1300 kg |
PCB belt conveyor
| Dimensions | Length*400*750mm |
| Material | Aluminum profile |
| Conveyor type | Belt conveyor |
| Speed | Adjustable |
| Weight | 120KG |
Welcome to contact us to get more information,we will reply ASAP!
