Automatic 1.2M LED production line
Brand: OUBEL
Delivery time: 10-20 working days
It is used for large LED production,high efficiency and save labor.Easy to operate.

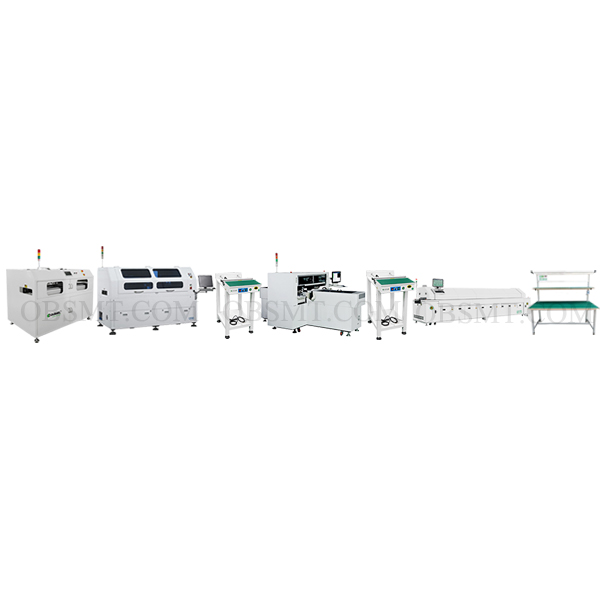

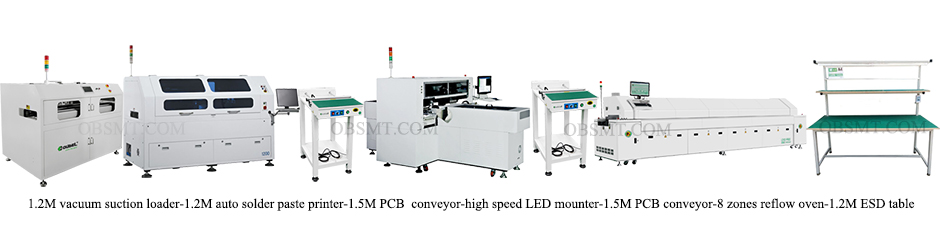

Automatic 1.2M LED production line
Automatic 1.2M PCB vacuum suction loader: It is used for loading the bare PCBs automatically by vacuum in SMT LED production line.
| Model | OB-SL708L |
| Dimensions | 1200*1370*1400mm |
| PCB size | 50*1200-300*1200mm |
| PCB capacity | 400pcs |
| PCB loading time | Approx. 12s |
| Weight | Approx. 160KGS |
Automatic 1.2M solder paste printer: It is used for long LED printer,with fast speed and high efficiency.
| Model | OB-1200 |
| stencil size | 1100*300mm-1500*750mm |
| Stencil thickness | 20-40mm |
| PCB size | 80*50-1200*340mm |
| Transport speed | 50-1200mm/sec. |
| PCB location | Support system |
| Clamping system | |
| Scraper speed | 10-200mm/sec |
| Table adjustment range | X:±8mm; Y:±10mm;θ:±2°; |
| Camera system | CCD |
| Air pressure | 4-6kg/cm² |
| Cycle time | Approx.12s |
| Printing accuracy | ±0.025mm |
| Dimensions | 2220*1220*1500mm |
| Weight | Approx.1500kg |
1.5M PCB conveyor: It is used for transport the PCB.
| MODEL | OB-C608 |
| Dimensions | 1500×640×910(mm) |
| PCB Width | 50-350(mm) |
| Speed | 0-1000(mm)/Min |
| Platform Material | ESD Rubber Mat |
| Weight | Approx.55Kg |
High speed LED mounter: 100000-120000CPH , group picking and group placing; 30nozzles. Special for the LED tube ,LED strip large quantity production.
| Model | OB-G13 |
| Dimensions | 2700(L)*1700(W)*1400(H) |
| PCB size | 1200MM(L)*250MM(W) |
| Operation system | Windows XP |
| Chips | up 1206, 2835,3014,3528,LED tape chips. |
| Mounting precise | ± 0.02mm Chip. |
| Feeder qty | 30pcs.(8mm feeder) |
| Production qty | 110000-120000 points/hour |
| Weight | Approx.1700KGS. |
8 zones reflow oven: It is used for large LED production,after the LED mounter,high efficiency.
| Model | HS-0802-LF |
| Quantities of heating zones | Top8 /bottom8 |
| Length of heating zones | 3500mm |
| Quantities of cooling zones | Up 2 ,Down 2 |
| Max width of PCB | 400mm |
| Width of conveyor | 50~400mm |
| Conveyor | Chain conveyor and meshwork conveyor |
| Conveyor speed | 0～2000mm/Min |
| Dimensions(mm)L*W*H | 5400*1370*1555mm |
| Weight (Approx.) | 2200kg |
1.2M ESD work table.
Welcome to contact us to get more informatiom,we will reply ASAP!
