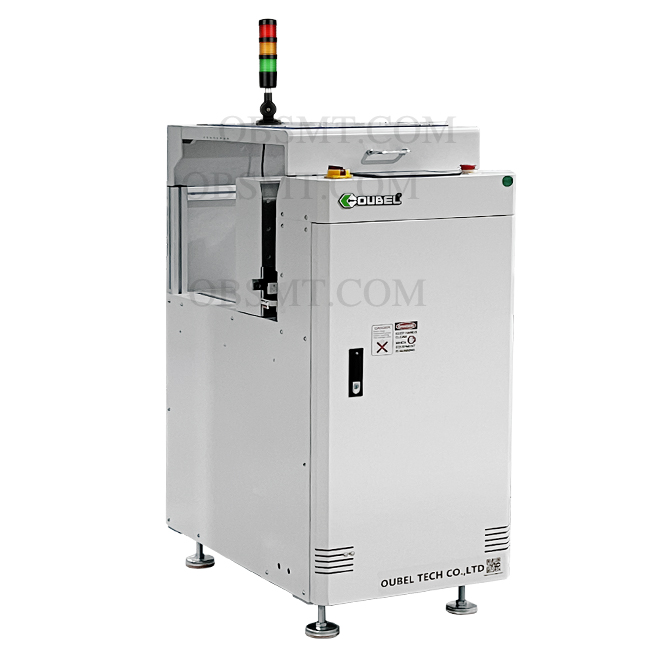

PCB Destacker With Cover
Model: OB-DL738A
Brand: OUBEL
Delivery Time:4-10 working days
Description
PCB Destacker With Cover is used for loading the bard PCBS in the SMT&DIP production line.
**E: sales@obsmt.com
Leave message
Description
PCB Destacker With Cover
Features：
1.User friendly “soft touch”LED membrance control panel or touch screen can be selected.
2.Pass through mode provided.
3.Smooth and parallel width adjustment (leadscrew).
4.Small machine footprint.
5.With SMEMA signal.
Details：
Specifications:
| Model | OB-DL738A | ||
| Dimensions | 890mm*550mm*1380mm | ||
| PCB size | 50*50-460*460mm | ||
| Max. PCBs capacity | 400pcs | ||
| Cycle time | About 10s | ||
| Power source | AC 110V/220V 50/60HZ | ||
| Air pressure | 4-6 bar, max.10L/min | ||
| Conveyor height | 910±20mm | ||
| Conveyor direction | L-R or R-L (optional) | ||
| PCB thickness | Min 0.6MM | ||
| Weight | 220KGS | ||
