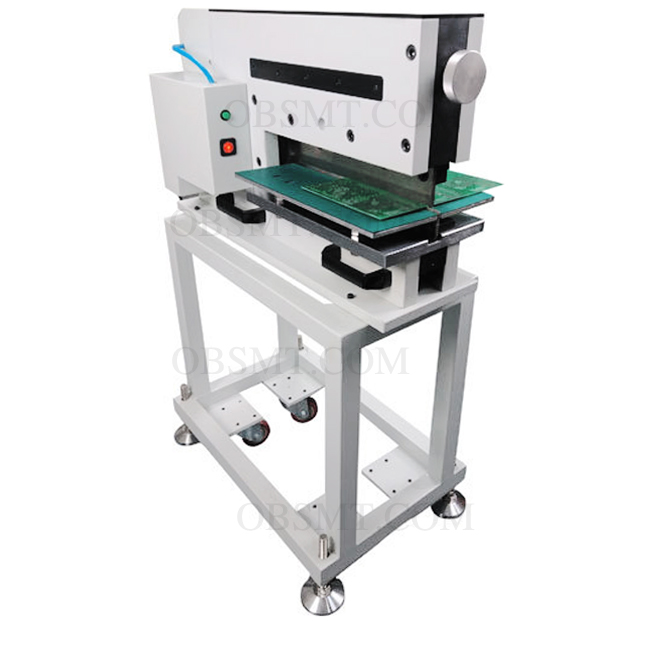

Pneumatic type PCB depaneling machine
Model: OB-C668D
Brand: OUBEL
Delivery Time: 7 working days
Description
Pneumatic type PCB depaneling machine
PCB V cutter . Double liner blades,Less stress!
Leave message
Description
Pneumatic type PCB depaneling machine
Features:
1.Less stress ,high cutting quality!
2. Suitable for cutting all kinds of PCB materail, even for Aluminum and copper materail PCB.
3.Security:the cutting opening is so small that the PCB can only enter, ensure our operator security!
4.Easy-using:whoever can operate skillfully without training !
5.Durable-using.
Specifications:
| Model | OB-C668D | |||||||||
| Dimensions | cutline size 700mm*325mm*400mm | |||||||||
| knife size | the knife 360mm*43.5mm*6mm | |||||||||
| Blade material | imported high speed steel | |||||||||
| V cut thickness | one third plate thickness | |||||||||
| Power | 1P AC 110V/220V 50/60HZ 10W | |||||||||
| Air source | 0.5-0.8MPa | |||||||||
| Speed | 1mm-30mm/s | |||||||||
| Cutting length | 1mm-360mm | |||||||||
| Cutting width | 4mm-100mm | |||||||||
| Suitable PCB | FR-4 substrate glassy plate | |||||||||
| Weight | Approx.130Kgs | |||||||||
