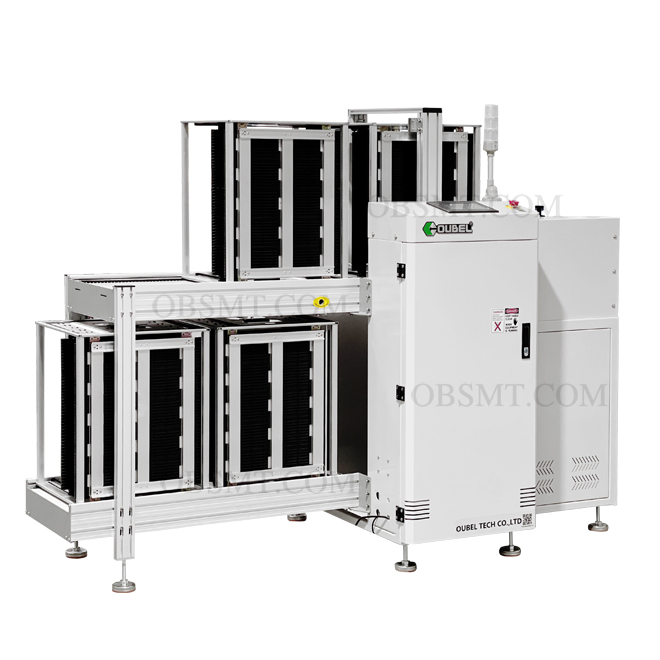

Auto PCB destacker Loader
Model: OB-DL738
Brand: OUBEL
Delivery Time: 10-15 working days
Description
Auto PCB destacker Loader
Auto loading the PCB in a production line.

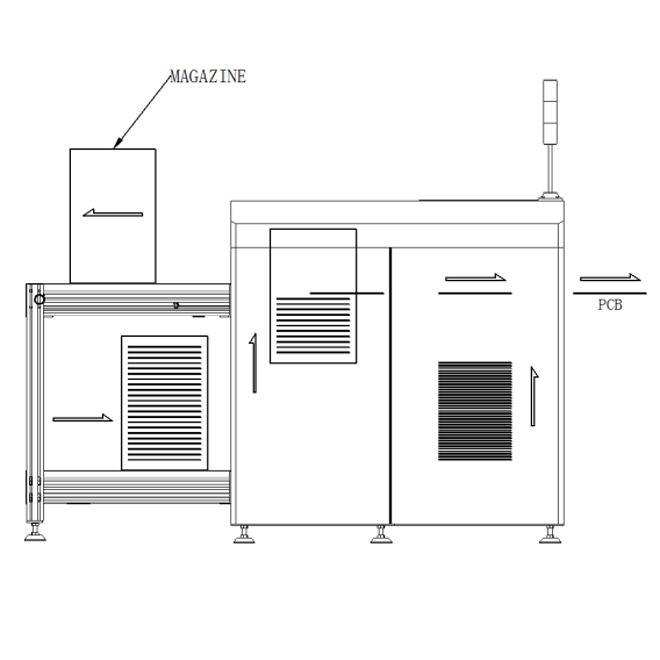

Magazine loader function + Bare board destacker function.
Leave message
Description
Auto PCB destacker loader
Features：
1.PLC + LED touch screen control, easy to operate.
2.By pass mode can be choosed.
3.Up&Down pneumatic clamps to secure the magazine rack.
4.Special air circuit design to ensure no PCB breakage.
5.With SMEMA.

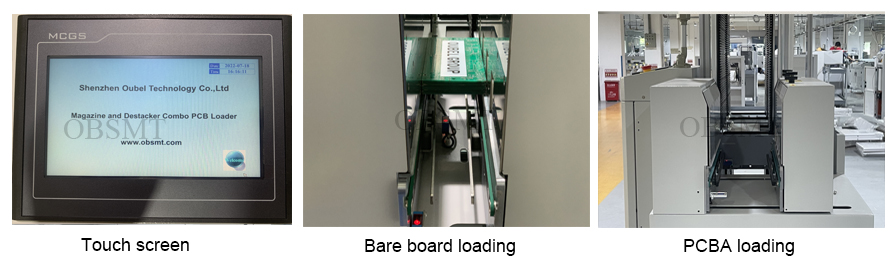

Details：
Specifications:
| Model | OB-DL738 | OB-DL738L |
| Dimensions | 1850*855*1250mm | 2150*950*1250mm |
| PCB size | 50*50-330*250mm | 50*50-460*390mm |
| Magazine size | 355*320*563mm | 535*460*563mm |
| Magazine quantity | Up 1, down 2 | |
| Pitch | 10/20/30/40mm | |
| PCB capacity | 400pcs(0.6mm thickness PCB) | |
| Cycle time | About.12s | |
| Power | 1P AC 220V/110V 50/60HZ | |
| Air pressure | 4-6bar, 30ltr/min max. | |
| Conveyor height | 900±20mm | |
| Conveyor direction | L-R or R-L | |
| Weight | Approx. 200Kgs | Approx.260Kgs |
