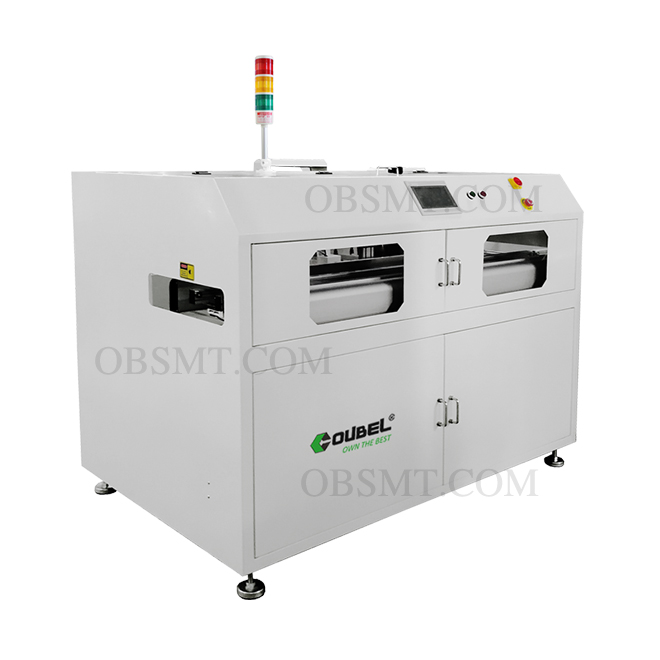

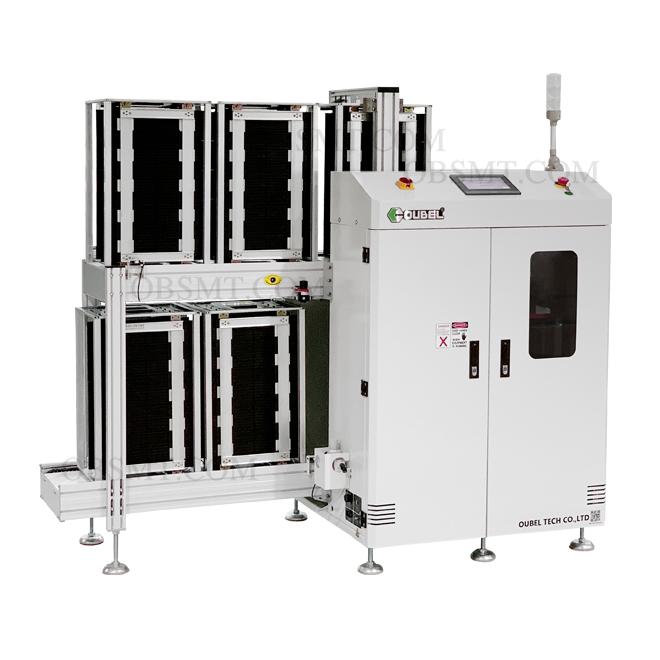

Auto Vacuum PCB magazine loader
Model: OB-VL708
Brand: OUBEL
Delivery Time: 4-7 working days
Description
Auto Vacuum PCB magazine loader used for loading the bare board or double sides PCB automatically in a production line.
**E: sales@obsmt.com
Leave message
Description
Auto Vacuum PCB magazine loader
Features:
1.PLC+touch screen control, easy to operate.
2.Adjust the position of the suction nozzle to ensure the clamping of the PCB.
3.Smooth and accurate translation (stepping motor).
4.The upper and lower air clamps ensure the location of the material box accurately.
5.Special gas path design ensures the PCB won’t break.
6.Loading and Suction two functions.
7.With SMEMA signal.

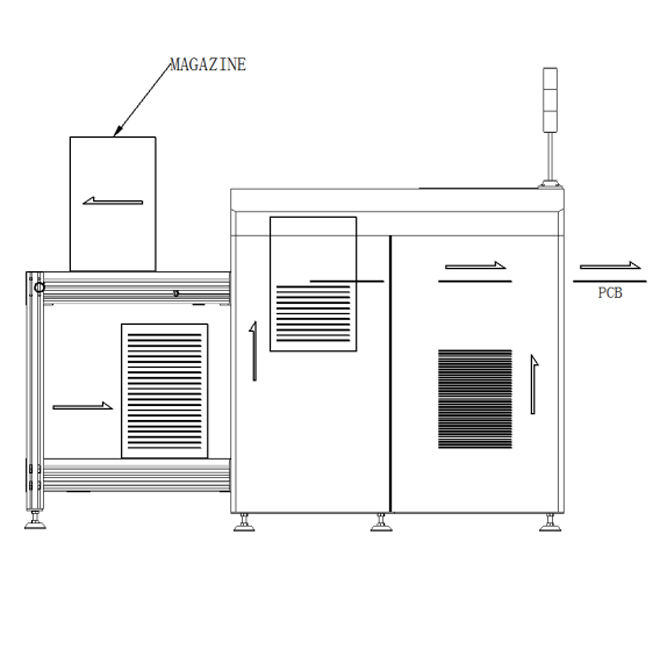

Details:
Specifications:
| Model | OB-VL708 | OB-VL708L | OB-VL708XL | OB-VL708XXL |
| Dimensions | 1640*865*1250mm | 1950*945*1250mm | 2005*1110*1250mm | 2005*1250*1250mm |
| Magazine size | 355*320*563mm | 460*400*563mm | 535*460*563mm | 535*530*563mm |
| PCB size | 50*50-330*250mm | 50*50-445*330mm | 50*50-530*390mm | 50*50-530*460mm |
| Magazine qty | Up 1, Down 1 | |||
| Pitch | 10/20/30/40mm | |||
| Max. PCB qty | 400pcs | |||
| PCB loading time | About 12s | |||
| Power source | AC 1P 110V/220V 50/60HZ Max.300VA | |||
| Air pressure | 4-6bar, Max.300L/min | |||
| Conveyor height | 900±20mm | |||
| Conveyor direction | L-R or R-L (optional) | |||
| Weight | Approx.200Kgs | Approx.240Kgs | Approx.280Kgs | Approx.320Kgs |
