Automatic DIP production line
Brand: OUBEL
Delivery time: 7-15 working days
Description
Auto DIP production line used for Long lead PCB welding,suit for large production quantity.Save labor.
Leave message
Description

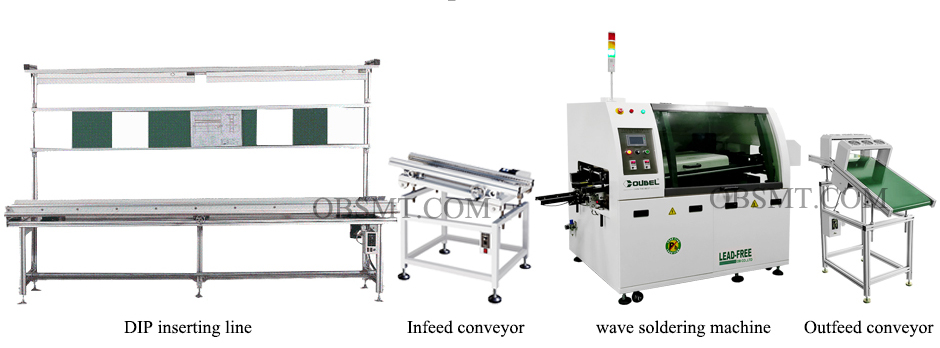

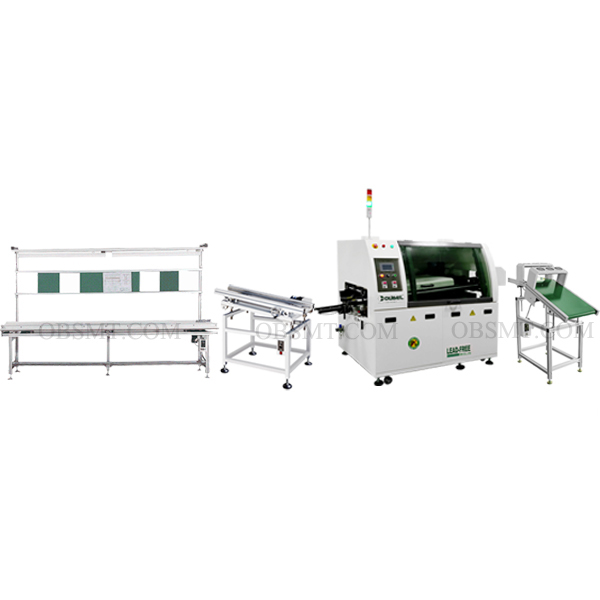

Automatic DIP production line
DIP inserting line: 2.4M/unit,put front of the DIP production line.
PCB infeed conveyor: It is used for transmission the PCB before wave soldering machine.
| Model | OBEC-868 |
| Dimensions | 1000*700*750mm |
| PCB width | 50-350mm |
| Conveyor type | Stainless steel chain |
| Speed | 0-2000mm/min |
| Transmission length | 1000mm |
| Weight | Approx.50Kgs |
Mini wave soldering machine: It is used for PCB long lead welding,dual wave,high efficiency.
| Model | OB-W330A |
| PCB conveyor speed | 0-2.0m/min |
| PCB Working width | 0～250mm adjustable (standard) |
| Preheating zone length | 700mm |
| Preheating zone number | 1 |
| Conveyor type | titanium fingers |
| Solder type | Lead free /lead tin |
| Solder volume | 140-160kg |
| Weight | Approx.300kg |
| Dimensions L*W*H | 2300*1200*1650mm |
PCB outfeed conveyor: It is used for unloading the PCBA after the wave soldering machine.
| Model | OBEC-868A |
| Dimensions | 1200*490*1200mm |
| Width | 400mm |
| Speed | 0-4000mm/min |
| Belt material | static-free/steel mesh belt |
| Weight | Approx.48Kgs |
