Compact PCB magazine loader
Model: OB-CL708
Brand: OUBEL
Delivery Time:4-10 working days
Description

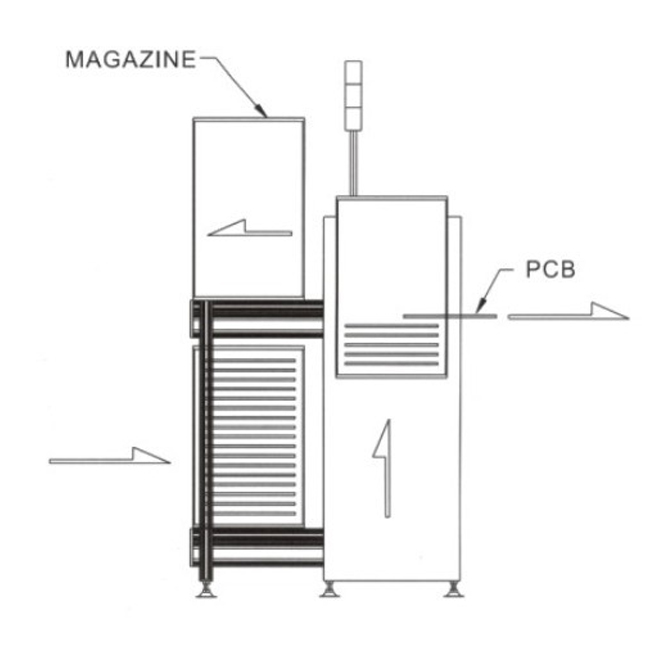

Compact PCB magazine loader is used for loading PCBs automatically in SMT&DIP production line. Small footprint. With 1 magazine.
**E:sales@obsmt.com
Leave message
Description
Compact PCB magazine loader
Features:
1.Applies to the PLC+touch screen controller.
2.Strong ,firm and stable design.
3.Up&down pneumatic clamps to ensure the magazine rack position.
4.Special gas circuit design to ensure no PCB breakage.
5. It can hold 1magazine, small footprint.
6.With SMEMA signal.

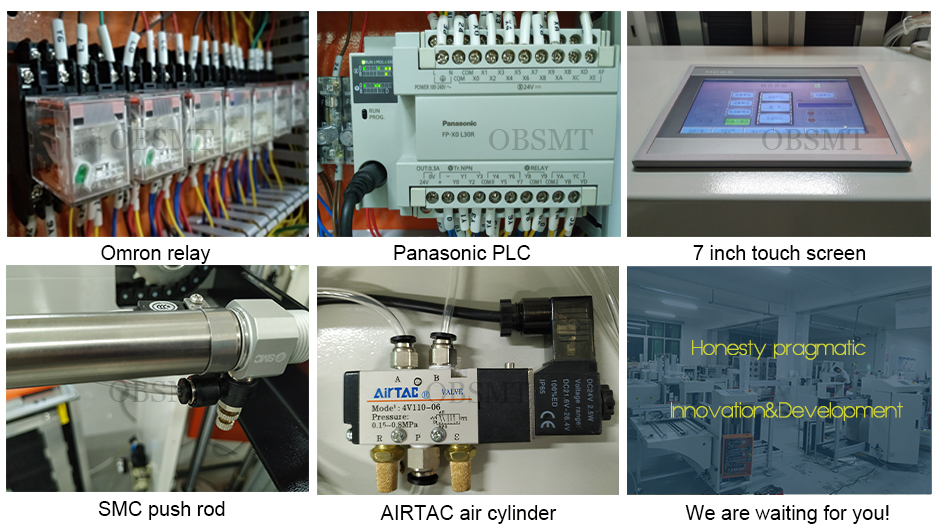

Details:
Specifications:
| Model | OB-CL708 | OB-CL708L | OB-CL708XL | OB-CL708XXL |
| Dimensions | 850*765*1250mm | 1170*845*1250mm | 1300*909*1250mm | 1300*980*1250mm |
| Magazine size | 355*320*563mm | 460*400*563mm | 535*460*563mm | 535*530*563mm |
| PCB size | 50*50-330*250mm | 50*50-445*330mm | 50*50-530*390mm | 50*50-530*460mm |
| Magazine quantity | Up1,down1 | |||
| Feed PCB time | About 6s | |||
| Magazine change time | About 30s | |||
| Pitch | 10,20,30,40mm | |||
| Power | 1P AC 110V/220V Max.300VA | |||
| Air pressure | 4-6bar,10L/min max. | |||
| Conveyor height | 900±20mm | |||
| Conveyor direction | L-R or R-L (optional) | |||
| Weight | Approx.120Kgs | Approx.180Kgs | Approx.220Kgs | Approx.280Kgs |
