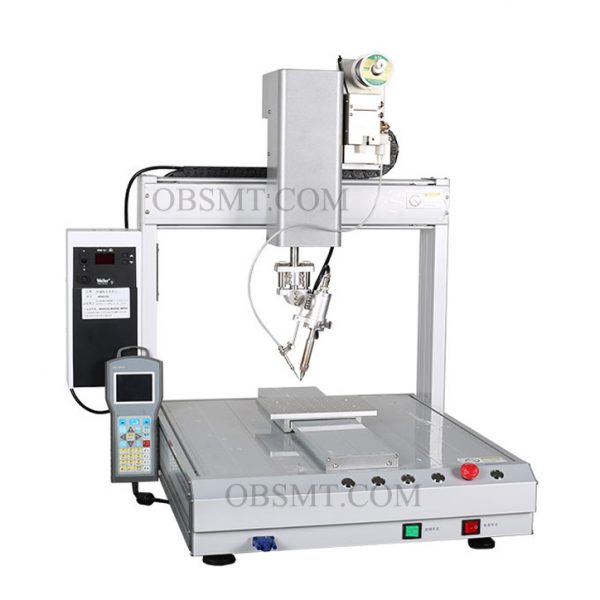

Desktop auto soldering robot

Model:OB-SW331
Brand: OUBEL
Delivery Time: 10-15 working days

Description

This machine is mainly used in the electronic manufacturing industry. It is mainly aimed at reflow soldering, wave soldering and other production equipment difficult to achieve process and soldering process.

Leave message

Leave message

Be the first to messgae “Desktop auto soldering robot”

Your email address will not be published.

Description

Desktop auto soldering robot

Feature

1.Flexible and diverse soldering methods, with spot welding, drag welding (pull welding) and other functions, and also built-in screwing, dispensing and handling procedures.

2.The equipment can store 99 operating procedures.

3.The same machine can process 99 different products by soldering tin.The mechanical arm of the equipment is made of aluminium profiles by open-die casting. It is not deformed, rust-free and runs steadily.

4.Programming can copy point-to-point and block-to-block to shorten the programming time.

5.The equipment has the function of automatic cleaning, which stabilizes the quality of soldering tin processing and prolongs the service life of soldering iron tip to a certain extent.

6.Multi-axis linkage manipulators are all driven by precision stepper motor and advanced motion control algorithm, which can effectively improve the accuracy of motion positioning and repetition.

Specifications

Model OB-SW331
Dimensions 720*600*700mm
Controlling system HENKONG system
Software system OUBEL
Driver Step motor+Synchronous belt+precise liner screw rod
Repeat precision(X,Y1,Y2,R,Z) ±0.02mm-0.05mm
Working voltage 220V50Hz
Air source 0.4—0.7Mpa
Max. speed 500mm/S
Power source AC220V   50 -60HZ    350W
Max. Load X axis:5㎏ / Y1/Y2axis:5㎏  /Z axis:3㎏
Axis No. 5 axis
Running  range X axis: 500mm ;Y1/Y2 axis :300mm; Z axis:100mm;
Working environment Temp: 0-40°      Humidity:20-91%
Heater Direct heating 300W
Temp. controller 50-500W
Feeder 0.3-1.5mm solder wire (single feeder)
Weight 70KGS
