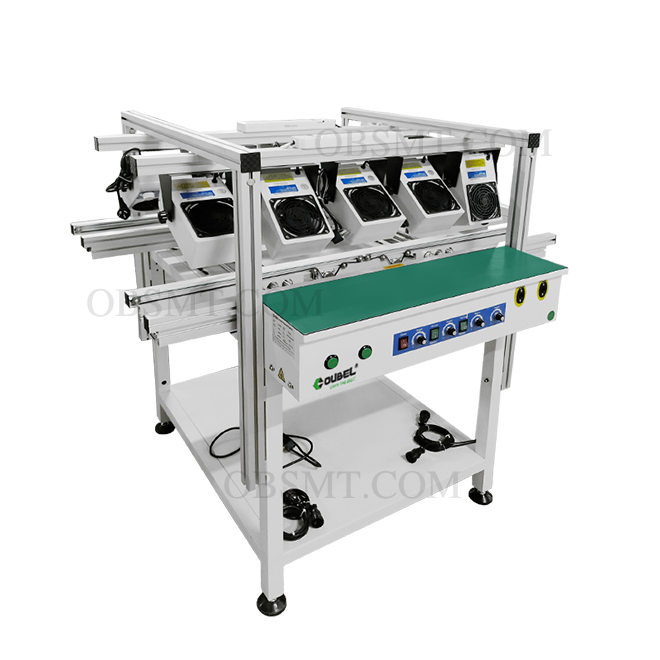

PCB conveyor with cooling fan
December 11, 2017

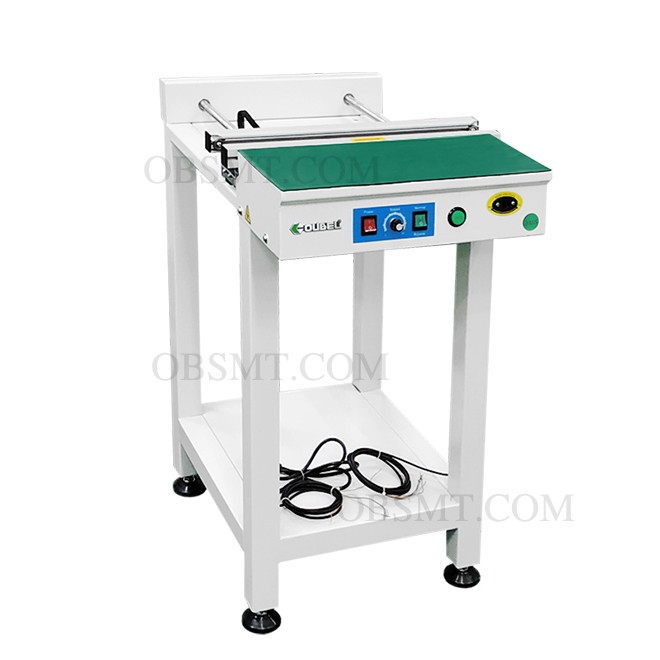

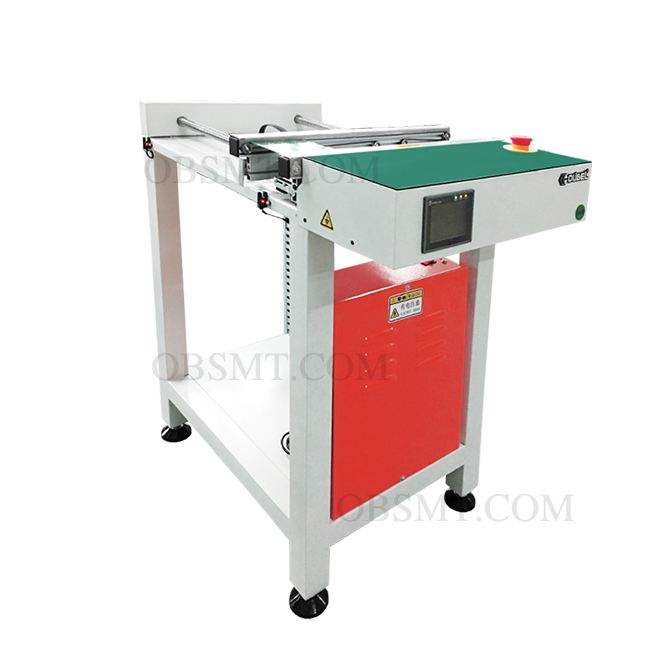

Auto PCB conveyor
Auto PCB conveyor
December 11, 2017
Show all

Dual rails PCB conveyor

Model: OB-C608B
Brand: OUBEL
Delivery Time: 2-7 working days

Description

PCB conveyor with dual rails , connecting the SMT machine to fulfill automation. Size is customized.With SMEMA.
**E:sales@obsmt.com

Leave message

Leave message

Be the first to messgae “Dual rails PCB conveyor”

Your email address will not be published.

Description

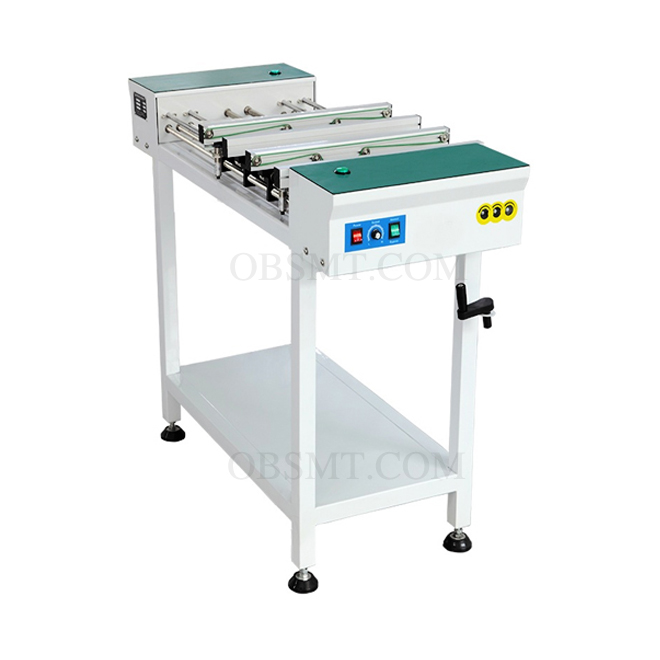

Dual rails PCB conveyor

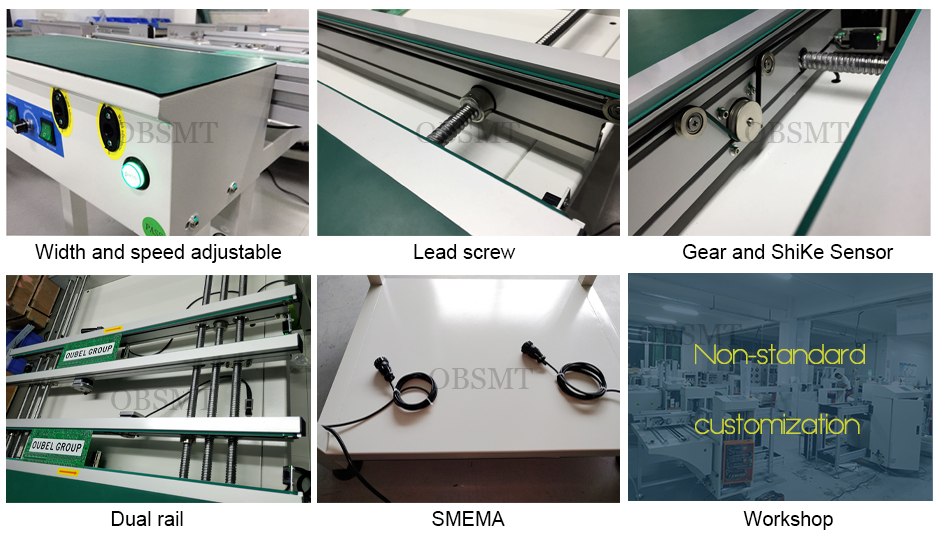

Features:

1.Modular deisgn.

2.Bottom weighted design improves running stability.

3.Inspection mode and automatic mode.

4.Speed is adjustable.

5.Size is customized.

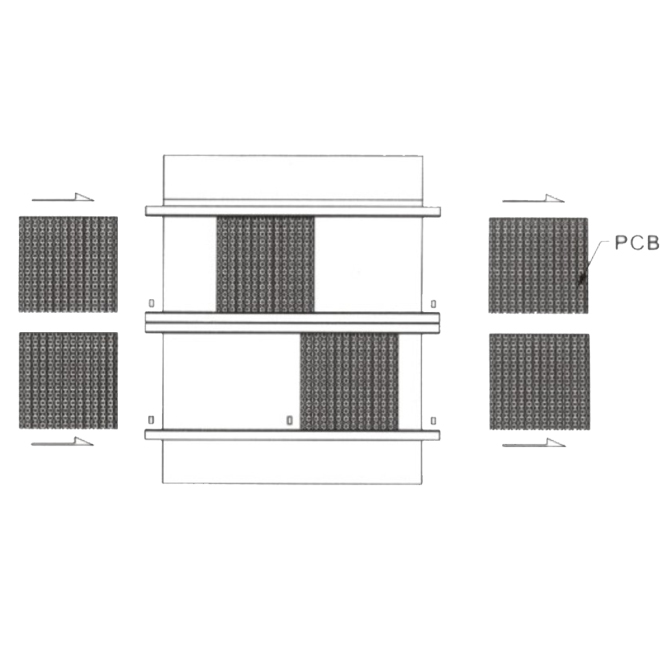

6.With dual rails.

7.With SMEMA.

Details:

Specifications:

Model OB-C608B
Dimensions Length*1050*910mm
PCB width 50-350mm
PCB direction L-R or R-L(optional)
Rail quantity 2
Conveyor speed 0.5-20M/min
Power 1P AC 110V/220V 50/60HZ
Conveyor height 900±20mm
Weight Approx.100Kgs
