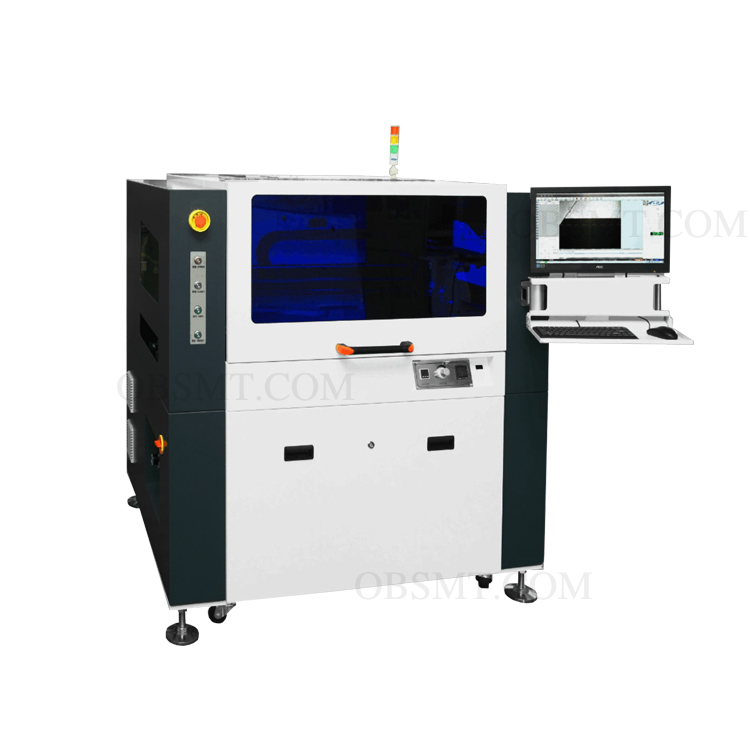

Automatic glue dispenser machine

Model: OB-HT700H
Brand: OUBEL
Delivery Time: 20-25 working days

Description

Automatic glue dispenser machine , with X.Y.Z axis .

Panasonic PLC + PC controller.

Leave message

Leave message

Be the first to messgae “Automatic glue dispenser machine”

Your email address will not be published.

Description

High speed automatic glue dispenser machine

Features

1.PC control, Windows XP operation system.Auto alarm and menu display function.

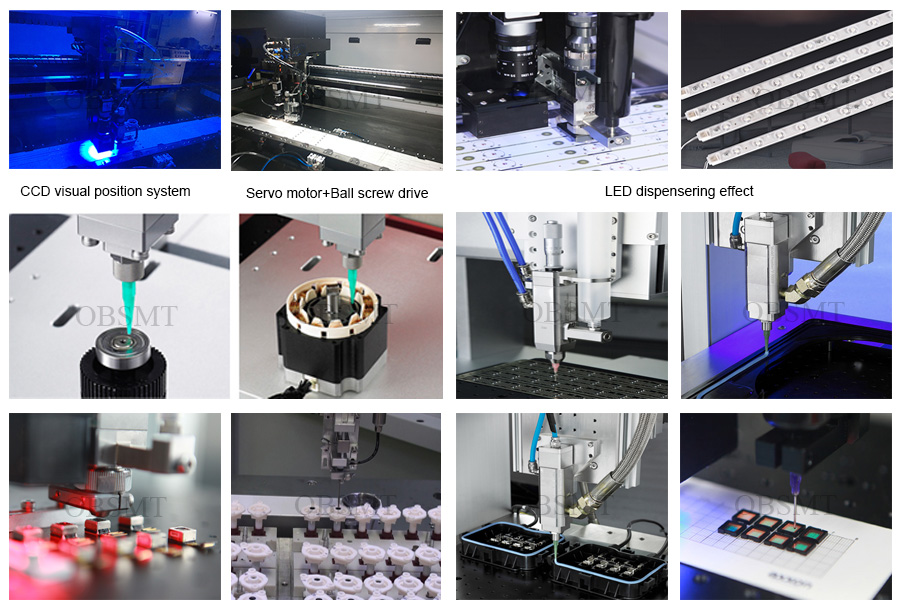

2.CCD visual position system.

3.Servo motor+ ball screw drive.

4.Automatic nzzle constant temp. system , which ensure the consistence of the glue flow.

5.Automatic clean system.

6.Offline or inline CCD programming is available.

7.Different types of nozzle are optional according to your glue type.

Analytical balance, pending board device, the workpiece heating device are optional.

Specifications

Model OB-HT700H OB-HT900
Dimensions L700*W1260*H1600mm L1200*W1260*H1600mm
Control method Controller + IPC Controller + IPC
Dispensing area X=330mm Y=400mm Z=30mm X=750mm Y=380mm Z=30mm
X.Y.Z driven method Servo motor+ball screw Servo motor+ball screw
Max. Running speed 1000mm/s 1000mm/s
Positioning accuracy ±0.02mm ±0.02mm
Repeat positionning accuracy ±0.02mm ±0.02mm
Nozzle 1set 1set
Nozzle heating Room temp.-100℃ Room temp.-100℃
Communication port SMEMA SMEMA
Programming mode Offline or inline visual programming Offline or inline visual programming
Power 1P 220V 50/60HZ 1P 220V 50/60HZ
Air input 6Kg/CM2 6Kg/CM2
Total power 2.4KW 2.4KW
Weight Approx.400KGS Approx.800KGS
Optional
Analytical balance Date reading accuracy 0.01mg
Laser height measure Automatic laser height detection and automatic height calibration for Z axis after change the product
Workpiece heating device Working zone heating,room temp-120℃±3℃
