Jet wave soldering machine
Model: OB-S310A
Brand: OUBEL
Delivery Time: 5 working days
Description
Manual PCB jet wave soldering suitable for PCB welding or repair

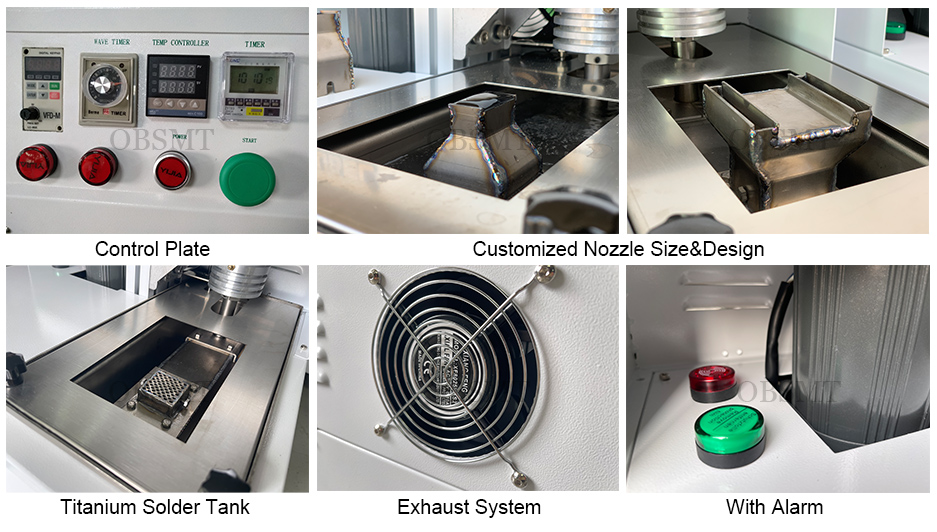

Titanium solder tank + solder nozzle
Customized
Leave message
Description

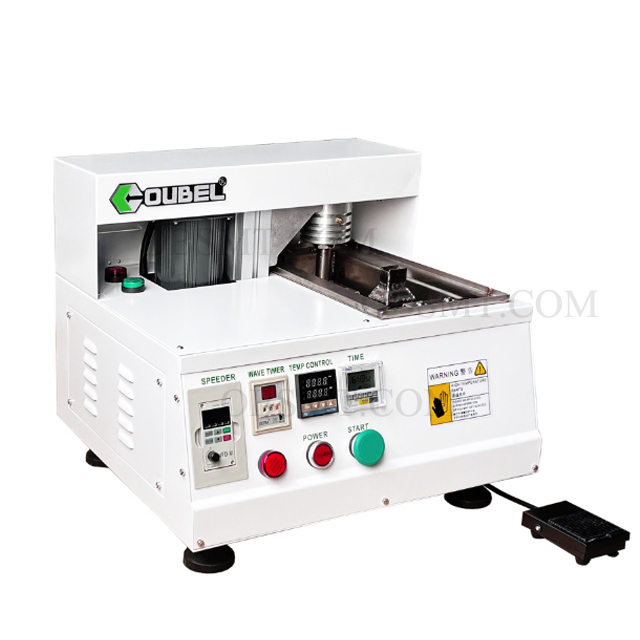

Manual PCB Jet wave soldering machine
Specifications
| Model | OB-S310A |
| Dimensions | 560*480*400mm |
| Solder tank size | 300*120x100mm |
| Solder capacity | 23KG |
| Nozzle size | 130*90mm |
| Power source | 1P 220V/50Hz-60Hz |
| Power | 2.5KW |
| Control method | By foot switch or by manual. Frequency converter stepless control. |
| Start wave delay | 0-30s |
| Heating time | About 1H |
| Temp control method | PID+SSR |
| Temp Precise | ±3° |
| Weight | Approx.40Kgs |
WELDING:
Manual jet wave soldering pot is most suitable for the small batch PCBA DIP welding, especially for welding the parts of a PCBA ( SMD+DIP chips mixed).
REPAIR:
Manual jet wave soldering pot is most suitable for repair the PCBA,it can tear down the chips onto the PCBA.
