PCB inspection conveyor with flexible desk

Model: OB-C608B
Brand: OUBEL
Delivery Time: 2-7 working days

Description

PCB inspection conveyor is put between two machines to connect and used for inpection the PCB. With flexible desk.Size is customized.

**E:sales@obsmt.com

Leave message

Leave message

Be the first to messgae “PCB inspection conveyor with flexible desk”

Your email address will not be published.

Description

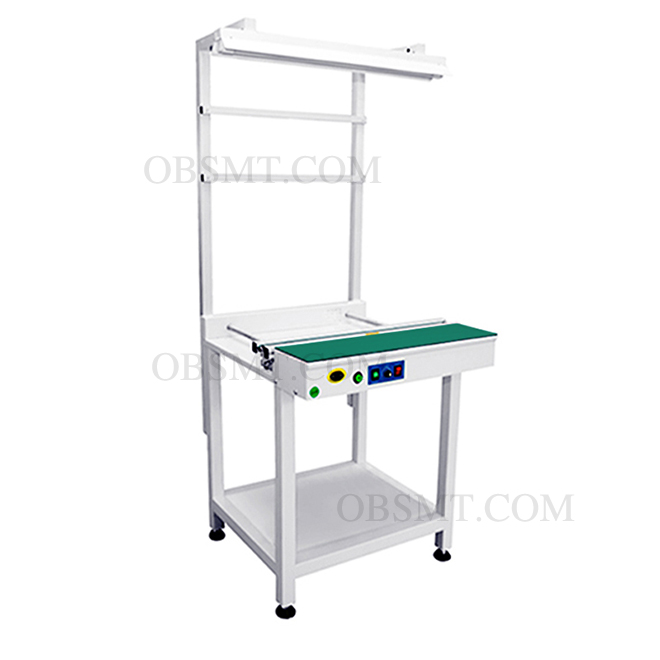

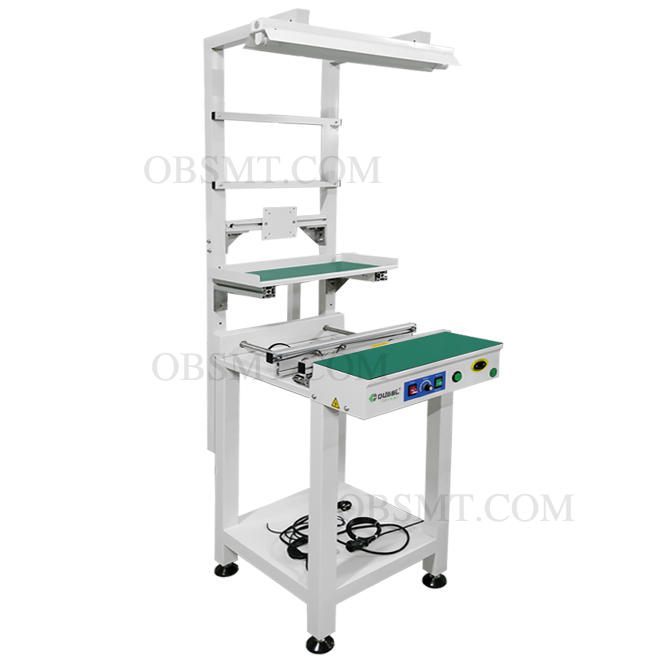

PCB inspection conveyor with flexible desk

Features:

1.Modular deisgn.

2.Bottom weighted design improves running stability.

3.Inspection mode and automatic mode.

4.Speed is adjustable.

5.Size is customized.

6.With light and SOP rack.

7.With SMEMA.

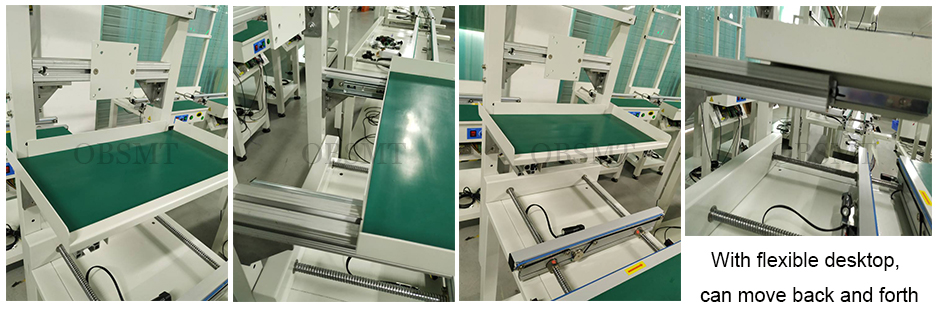

8.With flexible desk

Details:

Specifications:

Model OB-C608B
Dimensions Length*690*910mm
PCB width 50-350mm
PCB direction L-R or R-L(optional)
Conveyor speed 0.5-20M/min
Power 1P AC 110V/220V 50/60HZ
Conveyor height 900±20mm
Weight Approx.80Kgs
