PCB Single side whole conformal coating line
Brand: OUBEL
Delivery time: 15-30 working days
It used for outdoor electronic products production,to realize Anticorrosion,waterproof and dustproof for PCB.

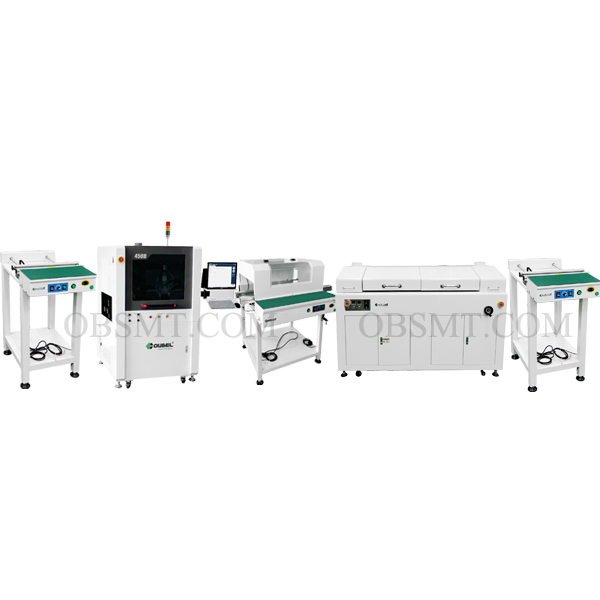

PCB Single side whole conformal coating line
First station: PCB conveyor
PCB conveyor connect the before and back machine to fulfill the automation. With SMEMA. Size is customized.
| MODEL | OB-C608 |
| Dimensions | Length×640×910(mm) |
| PCB Width | 50-350(mm) |
| Speed | 0-1000(mm)/Min |
| Conveyor type | belt conveyor |
| Weight | Approx.55Kg |
Second station: Selective conformal coating machine
Selective conformal coating machine.Anticorrosion，Waterproof, Dustproof for PCB.
| MODEL | OB-GC450B |
| Dimensions | 1300*1080*1800(mm) |
| Weight | 600KGS |
| Speed | 0-1000(mm)/Min |
| Conveyor speed | 0～2400mm/min |
| PCB Width | 50-450mm |
| Glue valve quantity | 2 |
| Coating precision | Min coating width：5-15mm |
| Conveyor type | Stainless steel chain |
Third station: UV conveyor
PCB UV conveyor,After the conformal coating machine. Chain conveyor + Top cover UV light.
| MODEL | OB-C608D |
| Dimensions | Length*1050*900mm |
| PCB width | 50-350mm |
| Conveyor type | By stainless steel chain |
| Conveyor speed | 0.5-20M/min |
| Weight | Approx.80Kgs |
Fourth station: IR curing oven
IR curing oven is used for baking the PCB after the conformal coating machine.Touch screen+PLC controller.
| MODEL | OB-CO2000 |
| Dimensions | 2000*960*1250mm |
| PCB width | 50～400mm |
| Conveyor speed | 700～2000mm/min |
| Heating zones | 2 |
| Weight | Approx.450Kgs |
Fifth station: PCB conveyor with chain conveyor
OUBEL can supply whole line solutions.Welcome to contact us if you are interested！
