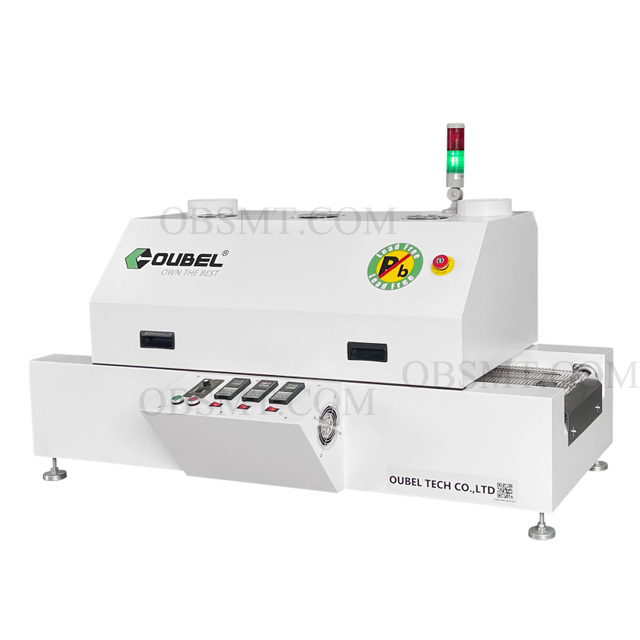

Desktop Mini reflow oven

Model: OB-R350
Brand: OUBEL
Delivery Time: 3-5 working days

Description

Desktop Mini reflow oven,suit for small production,with 3 heating zones.

Leave message

Be the first to messgae “Desktop Mini reflow oven”

Model				OB-R300
Dimensions				1400610650mm
Heating zone quantity				Up 3 down 0
Heating zone length				1000mm
Heating method				Hot air
Cooling zone qty				by cooling fan
PCB Max. width				Max.280mm
Conveyor direction				L-R or R-L
Conveyor height				880±20mm
Conveyor method				By Mesh
Conveyor speed				0-1500mm/min
Power				3P 380V or 1P 220V 50/60HZ
Start power				5KW
Normal working power				Approx.1.5KW
Heating time				Approx.15minutes
Temperature control range				Room temperature -400℃
Temperature control method				PID +SSR
Temperature control precise				±1 ℃
PCB temperature distribution deviation				±2 ℃
Alarm				Over temperature
Weight				Approx.60KGS
