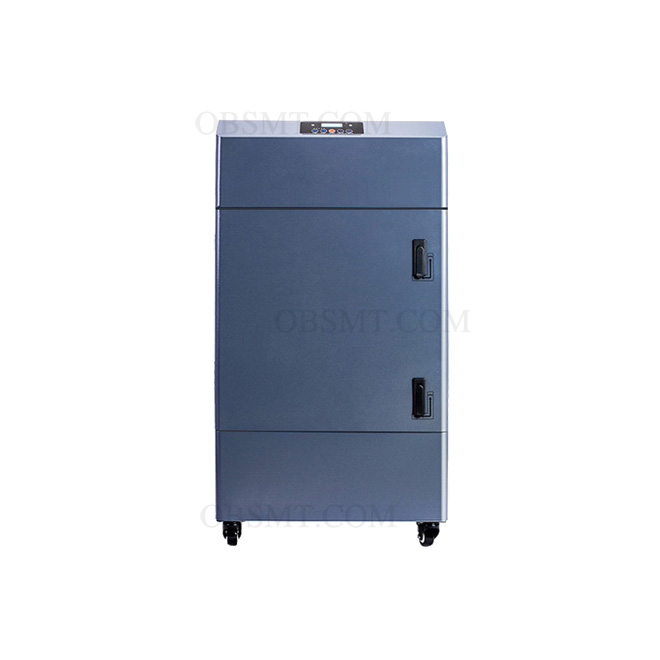

Reflow soldering fume purifier

Model: OB-P06
Brand: OUBEL
Delivery Time: 5-7 working days

Description

Multiple filtration, rapid purification, 43% less power than other similar products.

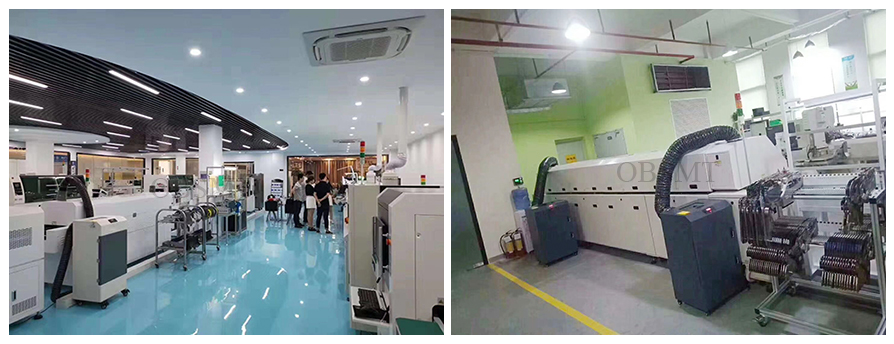

It suits for reflow soldering oven,wave soldering machine,laser carving, laser cutting and laser welding.

Leave message

Leave message

Be the first to messgae “Reflow soldering fume purifier”

Your email address will not be published.

Description

Reflow soldering fume purifier

Features:

1. Brushless motor, low noise, high speed, stable operation, long life, low power consumption, high efficiency (zero maintenance, zero material consumption).

2. Dual eddy fan design, fatigue resistance, smooth operation, low noise, high air volume, high suction force, high efficiency.

3. Installation of stepless speed regulator, remote control operation, air volume can be adjusted at will.

4. Multifiltration design ensures that toxic and harmful substances in smoke are filtered thoroughly and effectively protects the environment and human health.

5. All the filter elements can be replaced separately, which prolongs the service life of the filter elements and reduces the use cost of the filter elements.

6. The installation is simple and convenient, which is conducive to the neatness and beauty of the workspace.

7. It meets the CE certification of EU and is safe and reliable.

8. It conforms to the national air quality inspection certification.

9. All-metal frame structure can resist strong impact and vibration.

10. Install casters at the bottom for easy movement.

Specifications:

Model OB-P06
input voltage 110/220V 50/60HZ
Noise ≤75dB
No-load speed 2*6500R/MIN
Output power 700W
Smoking tube Length and diameter(customized)
Single-port wind speed 25M/S
Air volume 570 m³/h
Dimensions 550*415*1070mm
Weight 75KG
Negative pressure 3000PA
