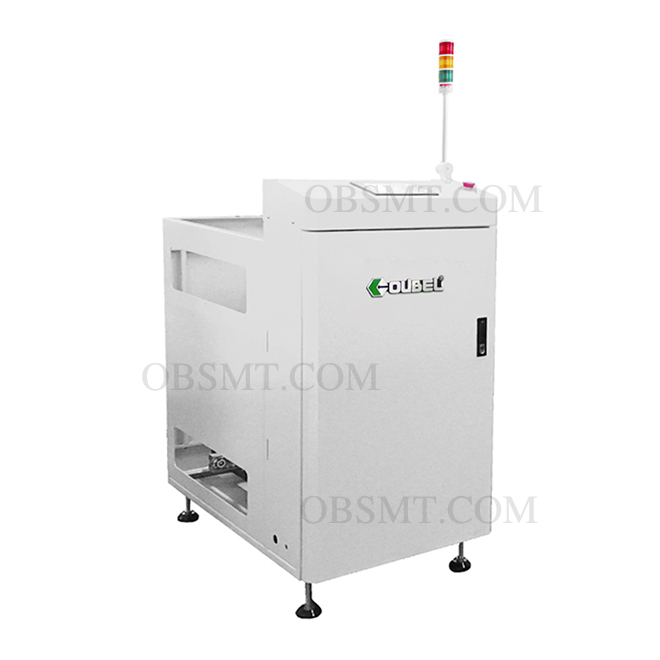

Automatic PCB elevator
Model: OB-LC330
Brand: OUBEL
Delivery Time: 4-7 working days
Description

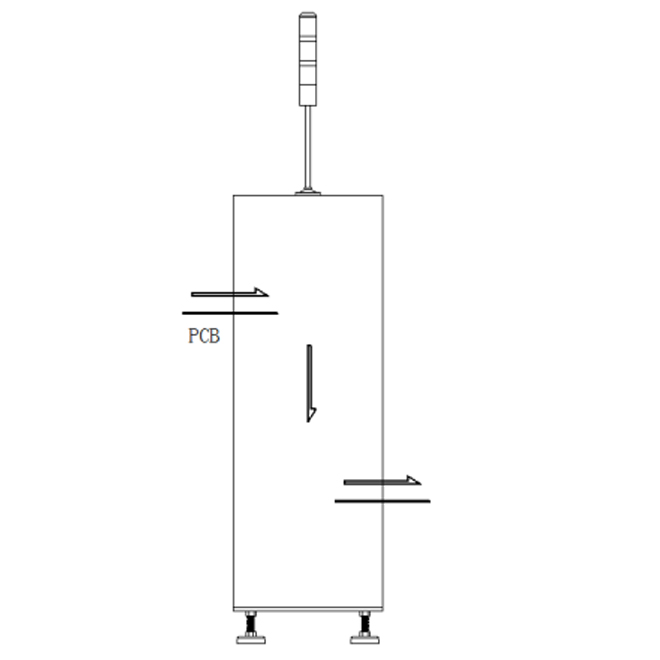

Automatic PCB elevator is used to adjust the height direction of the circuit board to different paths.
**E: sales@obsmt.com
Leave message
Description
Features
1.PLC+LED touch screen control, easy to operate.
2.Full closed design ensures safety level of operation.
3.Maintenance window is designed to facilitate machine maintenance.
4.Smooth and precise width adjustment (leadscrew).
5.Smooth and accurate lift (brake motor).
6.Minimize the transmission gap between conveyors.
7.Height can be customized.
8.With SMEMA signal.
Specifications
| Model | OB-LC330 | OB-LC330A | ||
| Dimensions | 535*920*(H)mm | 610*1050*(H)mm | ||
| PCB size | 50*50-460*330mm | 50*50-530*460mm | ||
| Belt type | Round belt or flat belt (optional) | |||
| Power source | AC 1P 110V/220V 50/60HZ | |||
| Conveyor direction | L-R or R-L (optional) | |||
| Weight | Approx.140KGS | Approx.200KGS | ||
