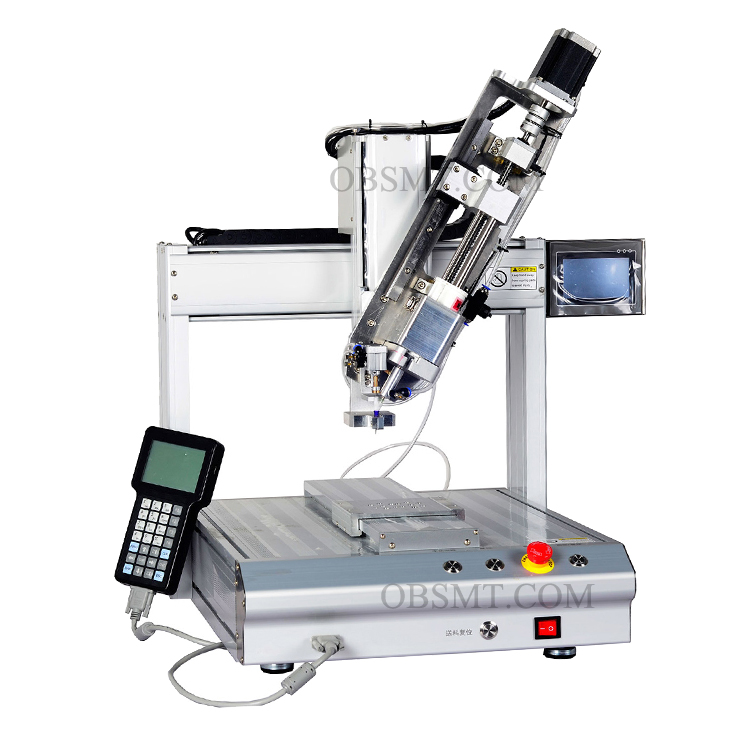

Titling desktop glue dispenser

Model: OB-G331B
Brand: OUBEL
Delivery Time: 10-15 working days

Description

It suit for sensors,relays,power adapters,electronic toys,buzzer,electronic components etc.

Leave message

Leave message

Be the first to messgae “Titling desktop glue dispenser”

Your email address will not be published.

Description

Titling desktop glue dispenser

Feature

1.Operation with handheld LCD panel teach box,which is easy to program and learn.

2.Functions of drawing points,lines,surfaces,arc,circle and consecutive complement of irregular curves to realize any 3D non planar trajectory path.

3.Excellent teaching function to support array,graphical browsing,three dimensional elliptic,common graphical library inserting,group editing and so on.

4.MINISD file storage with high speed and 2G capacity can store 999 dispensing process documents.

5.The size of glue,speed of glue spread,dispensing time,time of halting dispensing can be set by parameters.

Specifications

Model OB-G331 OB-G441
Dimensions 470*410*530mm 520*590*600mm
Running axis X.Y,Z axis
Running size 300(X)*300(Y)*100(Z)mm 400(X)*400(Y)*100(Z)mm
Highest speed 300mm/s
Repeat precision ±0.02mm-0.05mm
Controlling system Hand held control system or touch screen control
Driving method Step motor+Synchronous belt+Liner guide rail
Program storage 1000 groups data,3M/group,5000pcs dots.
Support file CAD,coreldraw
Max.Load Y:5KGS; Z: 2KGS.
Power AC 1P 110V/220V 50/60HZ
Weight Approx.45KGS Approx.50KGS
