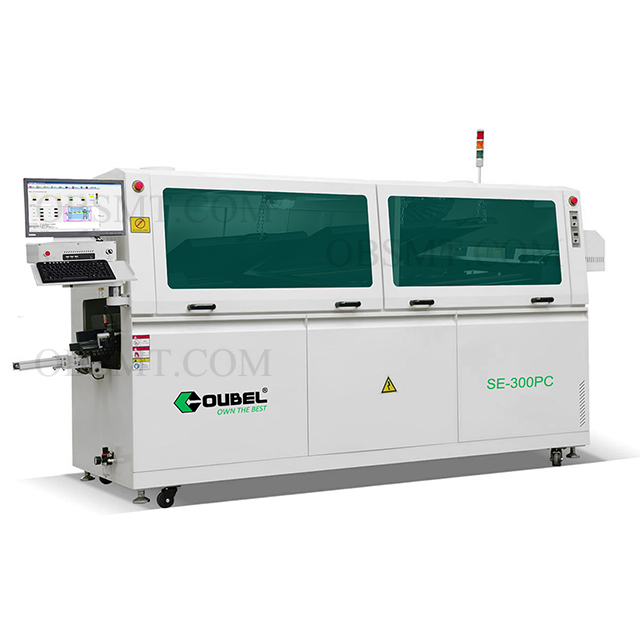

Middle Size Wave Soldering Machine With PC SE-300-PC

Model: SE-300-PC
Brand: OUBEL
Delivery Time: 15 working days

Description

Middle size wave soldering machine with PC SE-300-PC
Dual wave . Solder pot size can customized.

Leave message

Leave message

Be the first to messgae “Middle Size Wave Soldering Machine With PC SE-300-PC”

Your email address will not be published.

Description

Middle Size Wave Soldering Machine With PC SE-300-PC

Features

1.Appearance design: novel, plastic spraying process can not drop paint, durable;

2.Hot air preheating: no blind area hot air preheating area, efficient heat conduction; Thick insulation layer, energy saving;

3.Alloy chain claw: high strength, long life;

4.Adjustable nozzle design: wave peak can be adjusted with the width of PCB board, greatly reducing the amount of tin oxidation when welding PCB small board;

5. Transmission mechanism: adopt precise modular design, accurate transmission, long life, easy maintenance;

6.Transportation system: closed loop control. Stepless speed regulation, precise control of PCB preheating and welding time;

7.Heating system: PID closed-loop temperature control, stable and reliable temperature control;

8.Flux spray device: step motor closed-loop automatic tracking spray system, spray width and spray time automatic adjustment, and can be set in advance and extend the spray time as required; Isolated design, pull-out, and removable, easy to clean and maintain;

9.Control system: intelligent control program, the use of brand electrical appliances, to ensure the stable operation of equipment;

10.Man-machine interface: the use of brand computers, to ensure the reliability and stability of the system;

11.Automatic switching machine: according to the date, time and temperature control parameters set by the user;

12.Fault prompt: the system fault self-diagnosis, the cause of automatic display, troubleshooting method at any time query;

13.Economic operation: automatic welding flux spraying, automatic crest, minimize the amount of flux and tin oxidation;

14.Protection system: short circuit and overcurrent protection, to protect the key electrical components of the equipment.



Specifications

Model SE-300-PC
Conveyor height 750±50mm
Conveyor direction L-R/R-L
Conveyor speed 0-2.0m/min
PCB Working width 0~300mm adjustable (standard)
Preheating zone length 1500mm
Preheating zone quantity 3
Preheating temperature Room temperature~250℃
Preheating zone power 10.5kw
Wave quantity Dual wave
Conveyor path gradient 3~7°
Solder type Lead free /lead tin
Solder volume 300 kg
Solder temperature Room temperature~350±1℃
Component height Max.100mm
Temperature control type P.I.D+SSR
Solder flux 10~100ml/min
Flux Capacity Max5.2L
 Wave height 0-12mm adjustable
Controller PLC+PC
Power 3P 5 Wires (5W,3P) 380V
Power for heating up 21kw
Power for operation Approx.6kw
Air supply 4-7kg/cm2
Weight Approx.1000kg
Dimensions L*W*H L3600*W1250*H1700mm
