NEW DESIGN 10 ZONES REFLOW OVEN

Model: HS-1002-LF
Brand: OUBEL
Delivery Time: 7-20 working day

Description

1.Siemens PLC+ Lenovo PC control;

2.English-Chinese interface;

3.Automatic Alarm system;

4.SMC Cylinder device.

Leave message

Be the first to messgae “NEW DESIGN 10 ZONES REFLOW OVEN”

Description

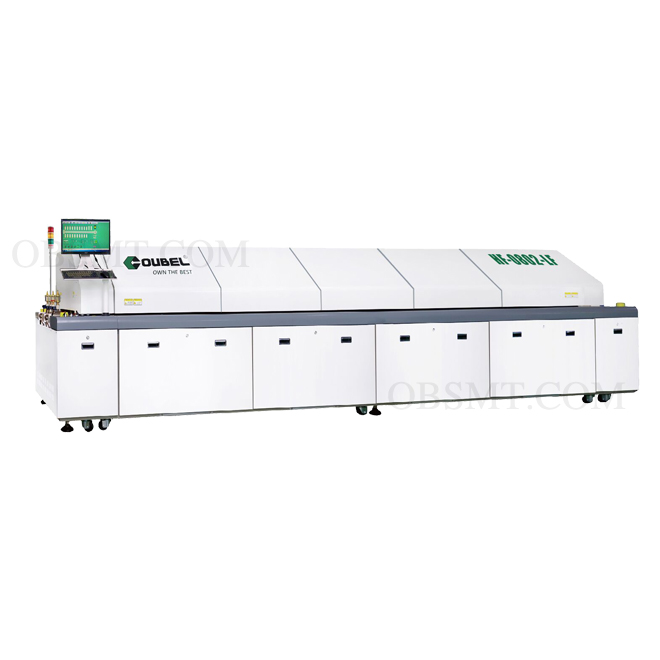

New design 10 zones reflow oven

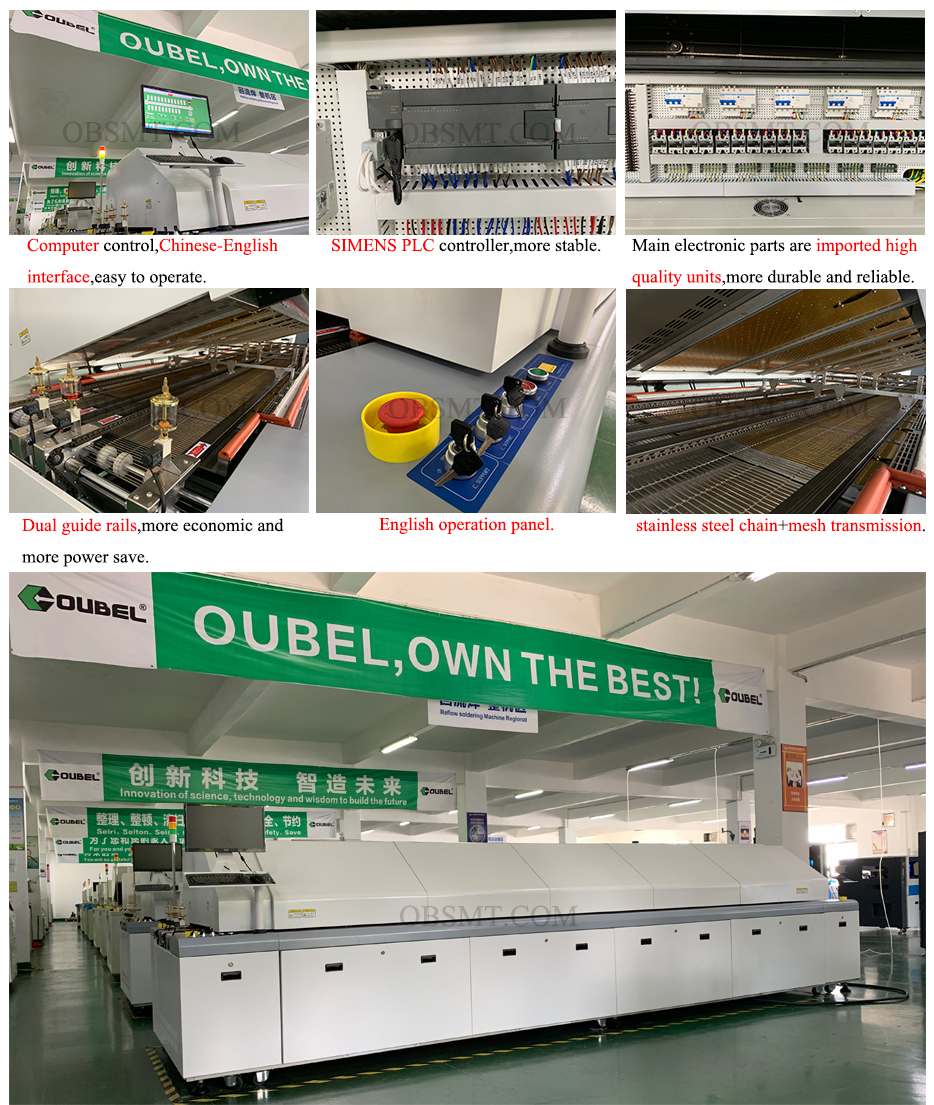

1. Lenovo PC , windows 7 operation system, Chinese-English interface screen.

2.All production data will be backup automatically,which is suitable for the ISO9000 management.

3.Fault Intelligent Diagnosis,display alarm and list out.

4.15% heat transferring efficiency was improved ,which is more suitable for the LEAD-FREE welding process.

5.Guide rail is through the special heat treatment, it’s hard to out of shape.

6.The main hanging is reinforced, which can avoid the deforming and PCB jamming.

7. Siemens PLC control, more durable and stable.

Model	HS-1002-LF
Specifications about heating system
Quantities of heating zones	Top10 /bottom10
Length of heating zones	4150mm
Quantities of cooling zones	2
Specifications about conveyor
Max width of PCB	400mm
Width of conveyor	50~400mm
Conveyor direction	L-R or R-L
Fixing conveyor rail	Front rail fixed
Height of conveyor	900±20mm
Conveyor	Chain conveyor and meshwork conveyor
Conveyor speed	300～2000mm/Min
Specifications about controlling parts
Power	5 line 3phase 380V 50/60HZ with UPS delay power off
Total power	60KW
Start power	32KW
Normal working consume power	Approx. 6KW
Heating time	Approx. 20min
Temperature range	Room temperature~~~350℃
Controlling way	PID closed loop control, SSR drive
Temperature control accuracy	±1℃
PCB temp. Deviation	±1.5℃
Abnormal alarms	When temperature is abnormal(too high or too low) & When the PCB board drops
Signal lamp	3 lamps: yellow-rising; green- constant; red- abnormal
Cooling System
Cooling method	Forced air /Air cooler is option
Specifications about machine
Dimensions(mm)LWH	621013701555mm
Weight (Approx.)	2550kg
