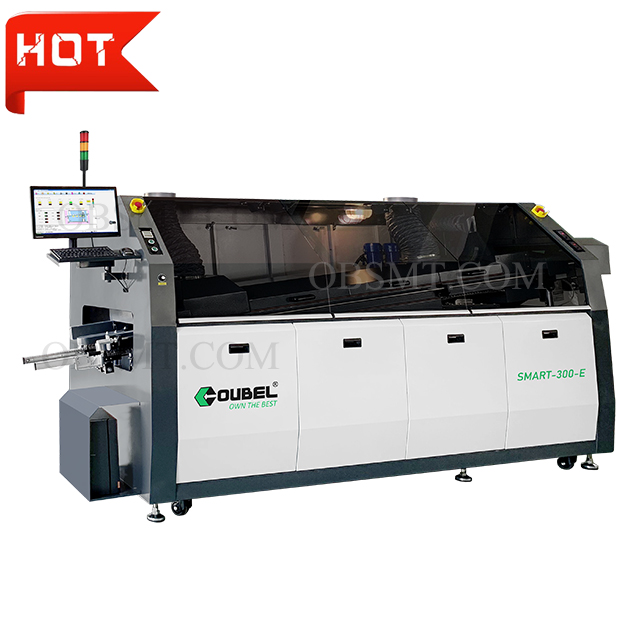

Top Quality Wave Soldering Machine SMART-300-E

Model: SMART-300-E
Brand: OUBEL
Delivery time: 15-20 working days

Description

Top Quality wave soldering machine is used for PCB DIP chips welding.Automatic welding, high efficiency.

Leave message

Leave message

Be the first to messgae “Top Quality Wave Soldering Machine SMART-300-E”

Your email address will not be published.

Description

Top Quality Wave Soldering Machine SMART-300-E

Features

1.Closed loop with inverter control system to keep the stability and accuracy of the conveyor speed;

2.The assistant pressure device nearby the entrance to prevent the PCB from slipping;

3.Spray nozzle driving by stepping motor is to make sure the coating uniformly;

4.Module design of spray fluxer system and the design of nozzle always be perpendicular to rail,which can make sure the flux penetrates PCB easily;

5. Forced air cooling system to attain the cold-down slope as per lead-free required;

6.Conveyor angle can easily be adjusted by manual;

7.Standard with hot air heating for preheating zones;

8.Module design suitable for SMT&THT component soldering;

9.Exhaust adopt centrifuagal fan with double filters to avoid any fluc drop to PCB;

10.The level of flux container is controlled by non-contact sensors to ensure no corrision and longer life;

11.Flux spray nozzle with self-cleaning system;

12.Stadard with air knives to prevent flux expand to preheat zone;

13.Wave height control adopted with inverter,it can be set individually;

14.1/4 HP high power mechanical pump to meet the wave as high as 15mm;

15.Light&Sound alarm,Emergency stop and over-load protection.

Specifications
Model SMART-300-E
Conveyor height 750±20mm
Conveyor direction L-R/R-L
Conveyor speed 0-2.0m/min
PCB Working width 0~300mm adjustable (standard)
Preheating zone length 1500mm
Preheating zone quantity 3
Preheating temperature Room temperature~250
Wave quantity Dual wave
Conveyor path gradient 3~7°
Solder type Lead free /lead tin
Solder volume 300 kg
Solder temperature Room temperature~350±1
Component height Top.120mm,Bottom.15mm
Temperature control type P.I.D+SSR
Solder flux 10~100ml/min
Controller PLC+PC
Power 3P 5 Wires (5W,3P) 380V
Power for heating up 21kw
Power for operation Approx.6kw
Air supply 4-7kg/cm2
Weight Approx.2000kg
Dimensions L*W*H 3600*1250*1750mm
