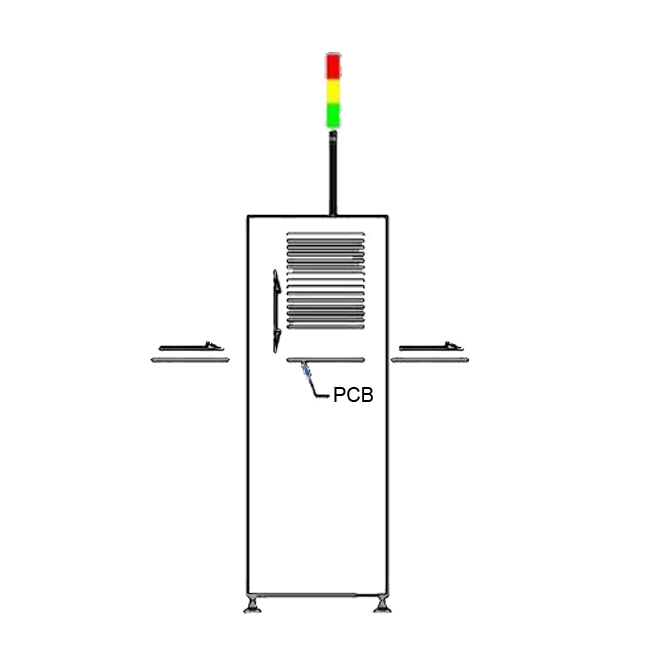

PCB cooling buffer with conveyor

Model: OB-MBC608
Brand: OUBEL
Delivery Time: 4-7 working days

Description

PCB buffer is used between two SMD machine to buffer.
With SMEMA.

Leave message

Be the first to messgae “PCB cooling buffer with conveyor”

Description

Features:

1.PLC+LED touch screen control, easy to operate.

2.Use durable rollers for transmission (No need change belts)。

3.Three modes of operation:FIFO （ first in first out）,LIFO （ last in first out）, PASS.

4.Smooth and precise width adjustment (leadscrew).

5.Fast, smooth and precise search and location.

6. Full closed design ensures safety level of operation。

7.With SMEMA.

Specifications:

Model			OB-MBC608
Discription			It is used between two SMD machine to buffer.
Dimensions			61011001250mm
PCB size			5050-530460mm
Circle time			About 10s
PCB capacity			25pcs( or customized)
Power			1P AC 110V/220V 50/60HZ
Power source			Max.250VA
Conveyor height			900±20
Conveyor direction			L-R or R-L
Weight			Approx.260KGS
