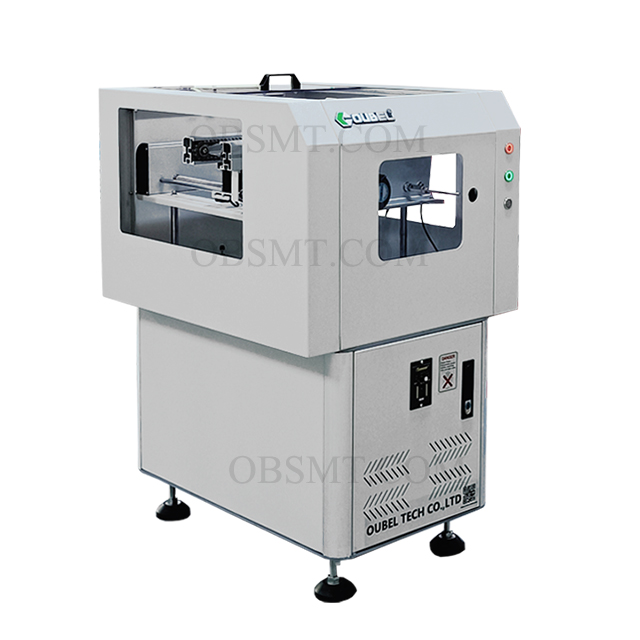

PCB Lifting Conveyor

Model: OB-LC330B
Brand: OUBEL
Delivery Time: 10-15 working days

Description

PCB Lift Conveyor

Can rise and fall, speed adjustable

Suitable for SMT production line

Leave message

Leave message

Be the first to messgae “PCB Lifting Conveyor”

Your email address will not be published.

Description

PCB Lifting Conveyor

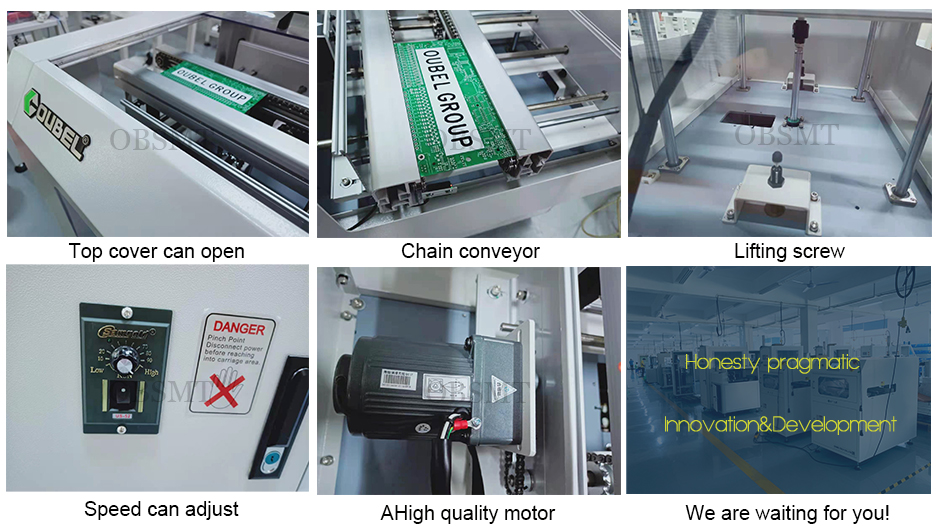

Features:

1.Enclosed design,safety enough;

2.Can rise and fall, machine height can be customized;

3.Top cover can be opened, it’s easy to make maintenance;

4.Smooth and parallel width adjustment (leadscrew);

5.Speed can adjust;

6.Minimize transmission clearance between conveyor;

7.With SMEMA signal.

Details:

Specifications:

MODEL OB-LC330B
Dimensions 535*700*900mm
PCB size 50*50-330*250mm
PCB thickness Min.0.6mm
Conveyor height 900±20mm
Conveyor direction L-R or R-L (optional)
Power supply 1P 110V/220V 50/60 HZ
Power consumption 40W
Communication SMEMA signal
Weight Approx.90Kgs
