PCB surface cleaning machine

Model: OB-C650A
Brand: OUBEL
Delivery Time: 15-20 working days

Description

PCB surface cleaning machine

Clean PCB surface dust and impurities

Brush cleaning, automatic more efficient

Leave message

Leave message

Be the first to messgae “PCB surface cleaning machine”

Your email address will not be published.

Description

PCB surface cleaning machine

Features:

1.Touch screen controller,easy to operate.

2.Parallel and smooth width adjustable(screw).

3.Multiple dust removal design,dust removal efficiency can reach 99%.

4.Fully enclosed design ensures operational safety level.

5.Top cover can open,easy maintenance.

6.Smaller footprint.

7.With SMEMA signal.

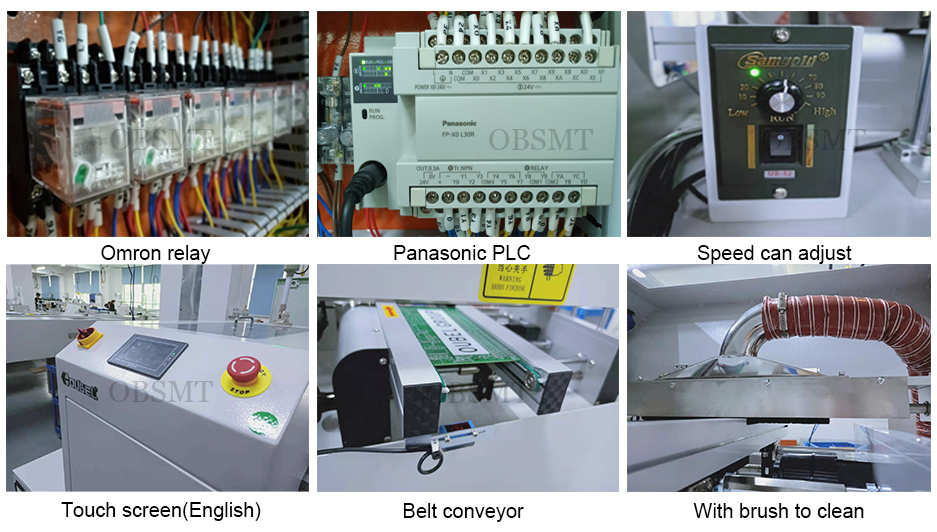

Details:

Specifications:

Model OB-C650A
Dimensions 600*680*1300mm
PCB size 50*50-445*350mm
PCB thickness 0.6-5mm
Conveyor height 900±20mm
Conveyor direction L-R or R-L (optional)
Power supply AC 1P 110V/220V
Power consumption Max.300V
Air source 4-6bar,10L/min max
Communication SMEMA signal
Weight Approx.120Kgs
