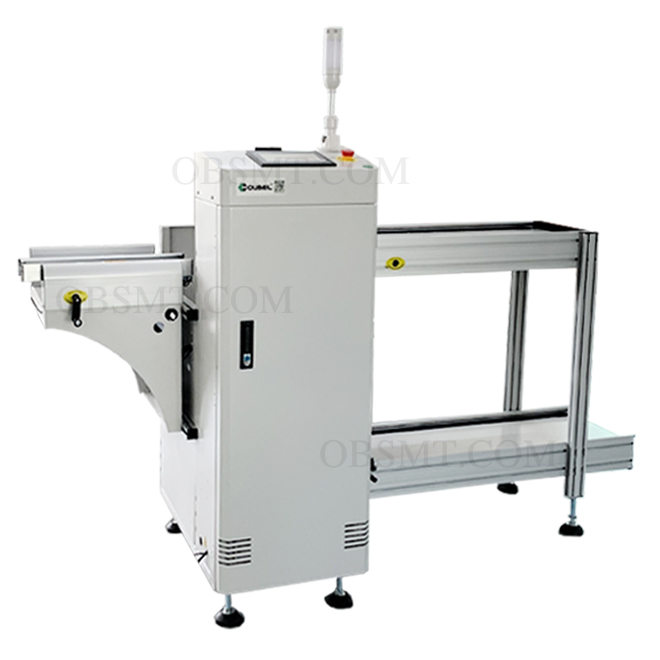

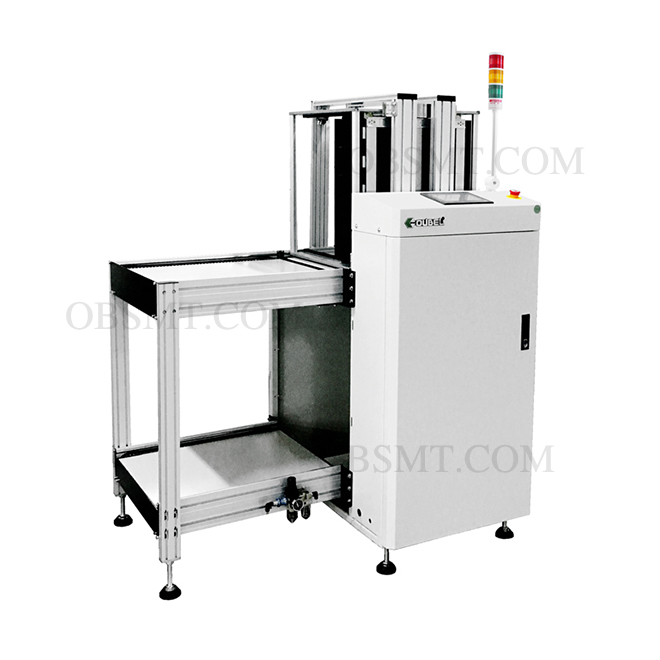

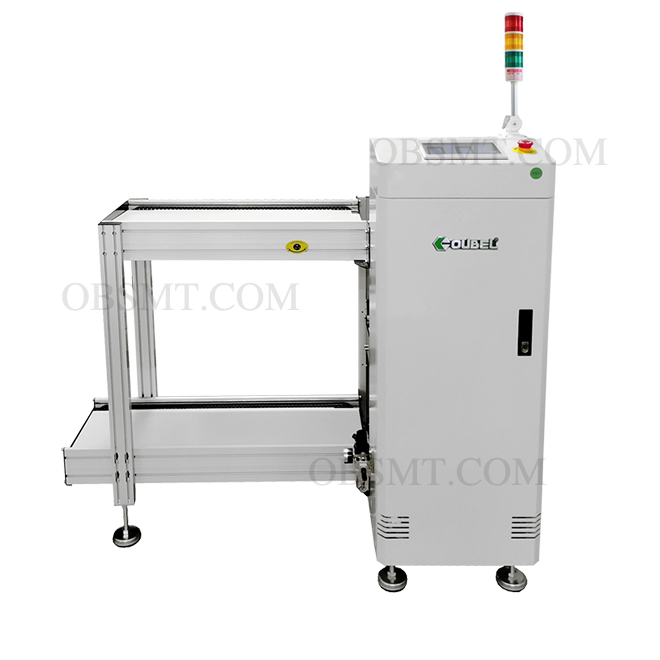

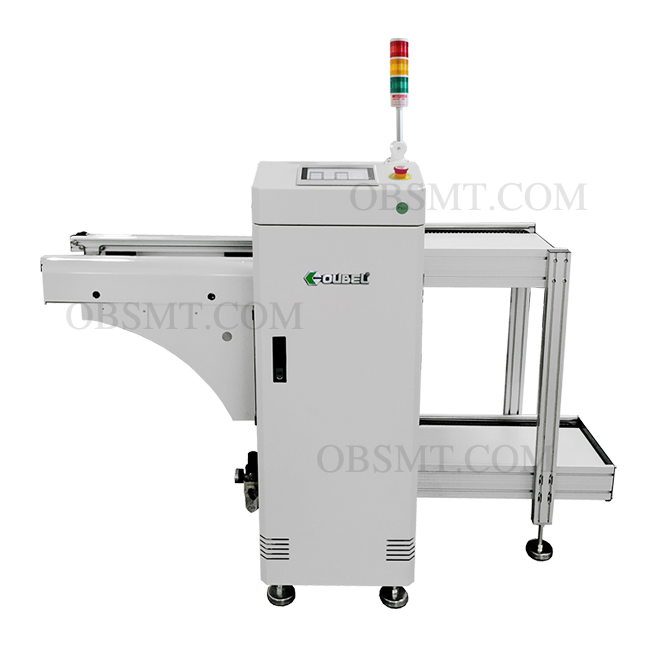

PCB Loader With Conveyor
Model: OB-L708C
Brand: OUBEL
Delivery Time:4-10 working days
Description
PCB Loader With Conveyor is used for loading PCBs automatically in SMT&DIP production line.With front conveyor,and the back conveyor can optional.
**E:sales@obsmt.com
Leave message
Description
PCB Loader With Conveyor
Features:
1.Applies to the PLC+touch screen controller.
2.Strong ,firm and stable design.
3.Up&down pneumatic clamps to ensure the magazine rack position.
4.Special gas circuit design to ensure no PCB breakage.
5.With SMEMA signal.
6.With front conveyor,and back conveyor is optional.

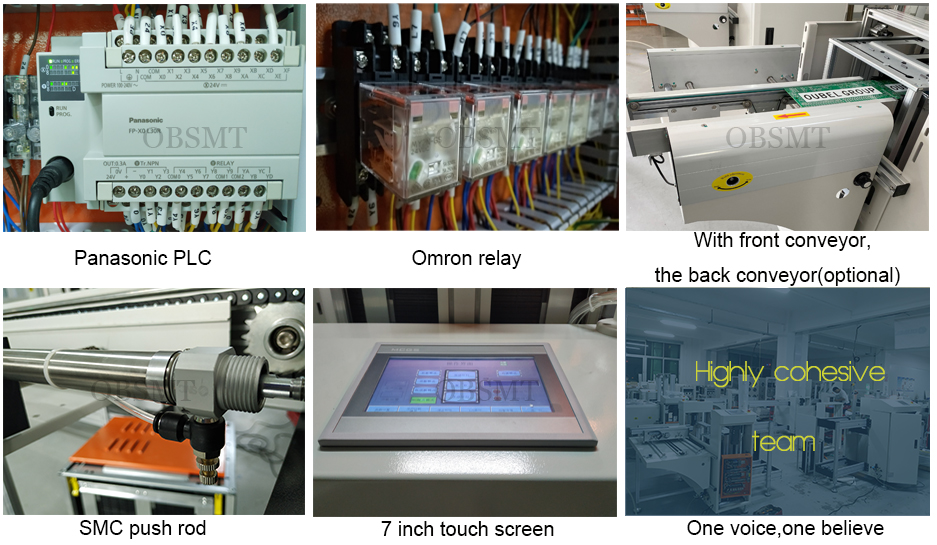

Details:
Specifications:
| Model | OB-L708C | OB-L708CL | OB-L708CXL | OB-L708CXXL |
| Dimentions | 1730*800*1600mm | 1950*880*1600mm | 2300*1010*1600mm | 2300*1080*1600mm |
| Magazine size | 355*320*563(mm) | 460*400*563(mm) | 535*460*570(mm) | 535*530*570(mm) |
| PCB size | 350*50-250(mm) | 455*50-330(mm) | 530*50-390(mm) | 530*50-460(mm) |
| Power | AC 110V/220V 50/60HZ | |||
| Air supply | 5kgf/cm2 | |||
| Transport height | 900±20(mm) | |||
| PCB height | 0.4-8(mm) | |||
| Transport direction | L-R or R-L (optional) | |||
| Up/down pitches | 10-100(mm) | |||
| Communication | SMEMA signal | |||
| Repeatability | 0.05(mm) | |||
| Weight | Approx.220KGS | Approx.240KGS | Approx.260KGS | Approx.280KGS |
